  • Features:
    Low distortion and wide dispersion midrange.
  • Benefits:
    The VM752 is a 75mm diameter dome unit loaded by a short, front mounted horn. It uses a single layer, round wire copper coil slightly longer than the focussed magnet gap to allow for high excursions at the lower end of its operating range. The dome and surround are critically doped for smoothness and consistency of response, a second, rear surround maintains coil stability. The magnet system uses a 200mm (8") ceramic magnet for high efficiency and is solidly fixed to a painted, aluminium chassis. The termination braids are hidden inside the unit and are not visible, connection is by 6.4mm (0.25") spade terminals allowing soldering or push on receptacles. The entire dome/coil assembly is built onto a replaceable ring that accurately self locates so allowing easy field replacement. The unit is intended for rear mounting, M5 threaded inserts are incorporated in the flange for fixing screws.
  • Model Number: VM752
  • Nominal Diameter (mm): 200
  • Power Capacity (Watt AES): 100
  • Sensitivity (dB/watt/m): 94
  • Frequency Range (Hz): 500-4000
  • Impedance (Ohms): 8
  • BL Factor: 9.3
  • Voice Coil Diameter (mm): 75
  • Voice Coil Material: Copper
  • Maximum Excursion (mm): 4 (before damage)
  • Magnet Assembly Weight (Kg): 8
  • Effective Moving Mass (Kg): 0.004
  • Compliance (M/N): 0.0004
  • Volume Displaced (litres): 1
  • Connection: 6.4mm solder terminals
  • Chassis: Diecast Aluminium
Mounting Information
Parameter Measure Unit
Overall Diameter 200 mm
Mounting Bolt Circle Diameter 172 mm
Number and Size of Bolts 4 M5
Baffle Cutout Diameter 153 mm rear mount
Depth 78 mm total depth
Weight 9 Kg

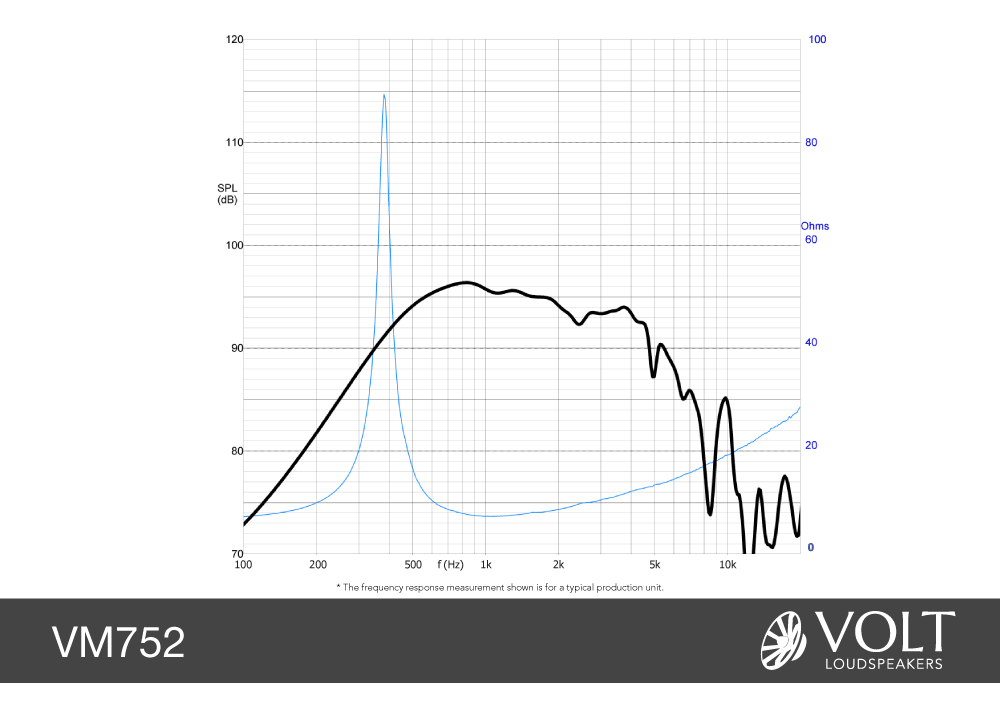

Response Curve


Frequency response tolerance: +/- 3dB (throughout the usable range of 500 – 4000Hz)

Thiele-Small Parameters
Parameter Measure Unit Tolerance
Fs 400 Hz +/-10%
Re 6.3 Ohms +/-10%
Qa n/a
Qe n/a
Qt n/a
Vas n/a litres
Xmax ±1 mm
Sd 57 cm²
Vd 5.7 cm³
Le 0.37 mH
