    High power handling, excellent dispersion and low distortion make the CX220.1 suitable for fixed installation applications where quality and dynamic range are essential.
  • Benefits:
    The CX220.1 is a coaxial unit with integral crossover and a ferrofluid cooled dome tweeter. The bass-midrange system features a symmetrical field magnet, dual rear suspensions and a critically doped surround for low colouration and linearity. The tweeter has a 28mm voice coil and Neodymium magnet for efficiency and power handling. A foam disc behind the tweeter flange minimises diffraction problems and gives a wide, smooth off axis response. The entire tweeter assembly is field replaceable. Thiele-Small parameters are optimised for use in compact enclosures.
Specifications
  • Model Number: CX220.1
  • Nominal Diameter (mm): 220
  • Power Capacity (Watt AES): 150
  • Sensitivity (dB/watt/m): 90
  • Frequency Range (Hz): 40-20000
  • Impedance (Ohms): 4, 8 or 16
  • BL Factor: 11.9
  • Voice Coil Diameter (mm): 38
  • Voice Coil Material: Copper
  • Maximum Excursion (mm): 25 (before damage)
  • Magnet Assembly Weight (Kg): 3.6
  • Effective Moving Mass (Kg): 0.028
  • Compliance (M/N): 0.00069
  • Volume Displaced (litres): 1
  • Connection:5mm solder terminals
  • Chassis: Diecast Aluminum
Mounting Information
Parameter Measure Unit
Overall Diameter 235 mm
Mounting Bolt Circle Diameter 218 mm
Number and Size of Bolts 4 M5
Baffle Cutout Diameter 192 mm front mount
Baffle Cutout Diameter 200 mm rear mount
Depth 150.5 mm below front flange
Depth 160 mm total depth
Weight 4.65 Kg

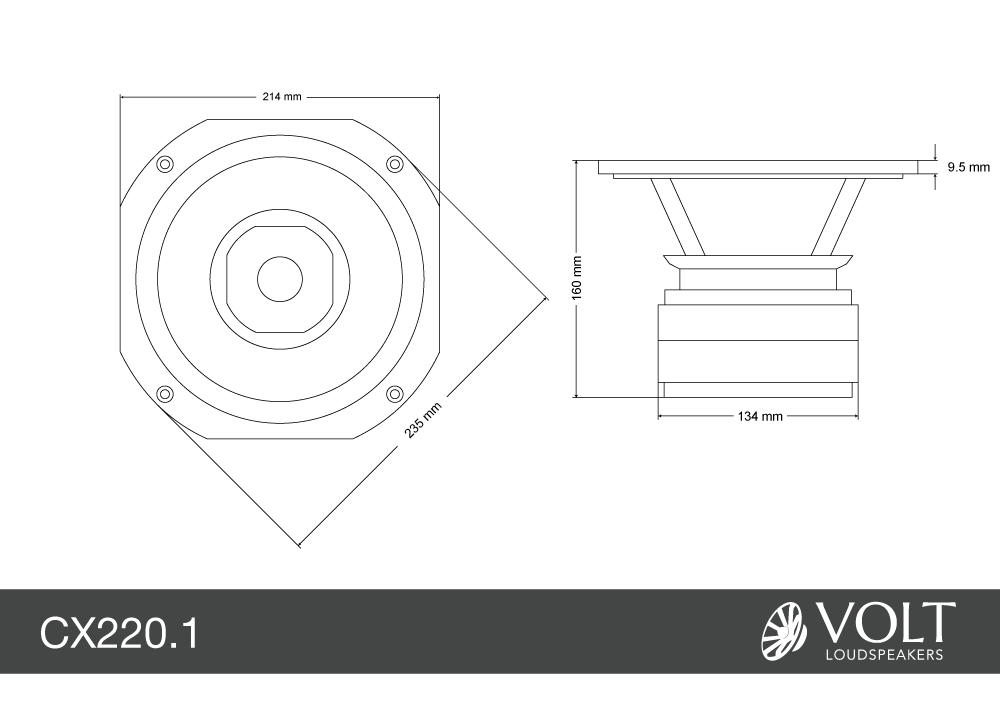

CX220.1_Line

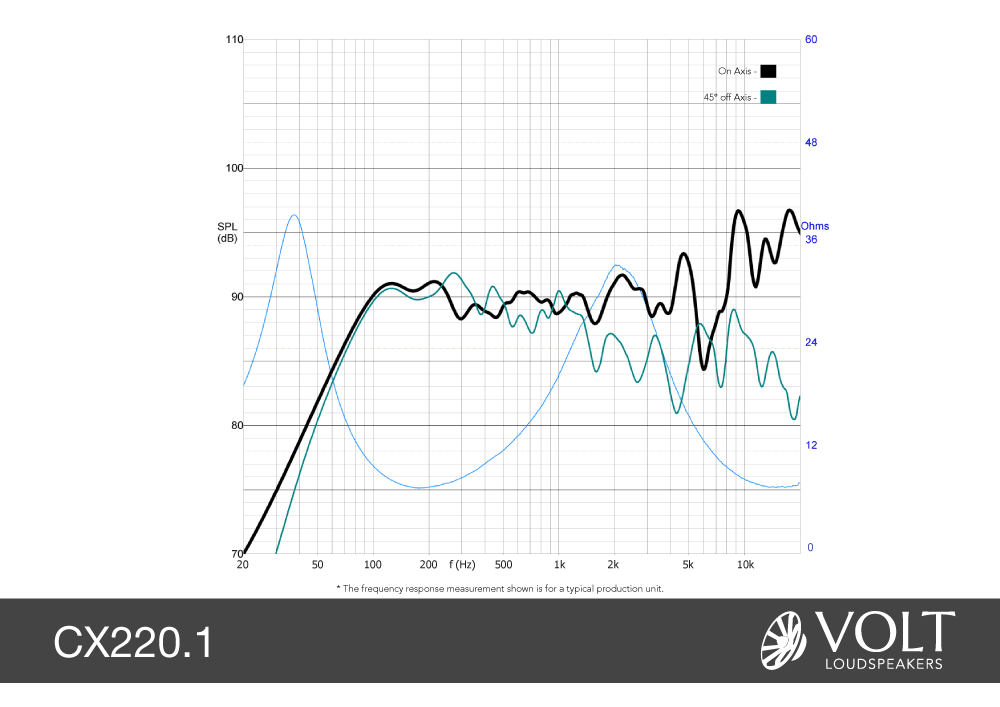

Response Curve

CX220.1_Resp

Thiele-Small Parameters
Parameter Measure Unit
Fs 36 Hz
Re 6.4 Ohms
Qa 1.61
Qe 0.29
Qt 0.24
Vas 44 litres
Xmax ±5.5 mm
Sd 214 cm²
Vd 118 cm³
Le 1 mH
Suggested Enclosures
Volume(litres) Vent Diameters(cm) Vent Length(cm) System Q -3db freq(Hz)
4 sealed box 0.85 110
10 5 13 7 67
20 5 8 7 50

Factsheet PDF
