    The SB220.1 has been optimised for bass performance in sub-woofer applications.
  • Benefits:
    The SB220.1 uses a vented, symmetrical field magnet system with an exceptionally long voice coil for large linear excursion capability . The cone uses a long fibred pulp for rigidity and with the dustcap, is damped by a coat of glossy black dope. Suspension stiffness and excursion is optimised for tight control over high power transients. The Thiele-Small parameters are ideal for easy use in small sealed, vented or bandpass enclosures to give extended bass performance.
Specifications
  • Model Number: SB220.1
  • Nominal Diameter (mm): 220
  • Power Capacity (Watt AES): 150
  • Sensitivity (dB/watt/m): 86
  • Frequency Range (Hz): 25-1000
  • Impedance (Ohms): 4 or 8
  • BL Factor: 9.5
  • Voice Coil Diameter (mm): 38
  • Voice Coil Material: Copper
  • Maximum Excursion (mm): 30 (before damage)
  • Magnet Assembly Weight (Kg): 3.6
  • Effective Moving Mass (Kg): 0.044
  • Compliance (M/N): 0.00038
  • Volume Displaced (litres): 0.8
  • Connection: 5mm solder terminals
  • Chassis: Diecast Aluminium
Mounting Information
Parameter Measure Unit
Overall Diameter 235 mm
Mounting Bolt Circle Diameter 218 mm
Number and Size of Bolts 4 M5
Baffle Cutout Diameter 192 mm front mount
Baffle Cutout Diameter 200 mm rear mount
Depth 108.5 mm below front flange
Depth 118 mm total depth
Weight 4.1 Kg

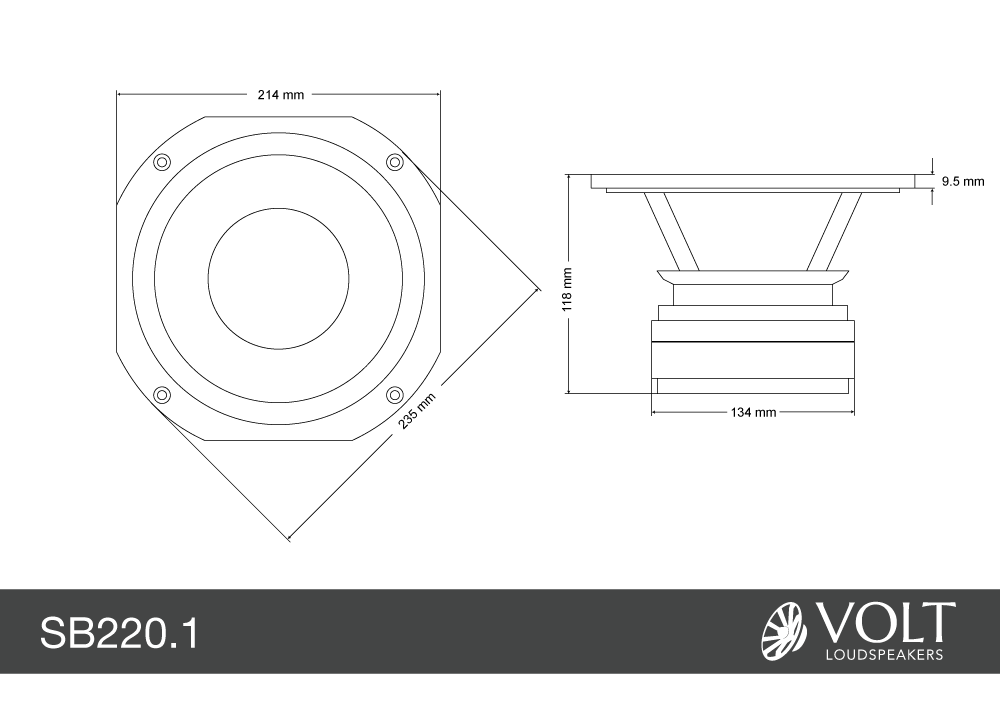

SB220.1_line

Response Curve

SB220.1_Resp

Thiele-Small Parameters
Parameter Measure Unit
Fs 39 Hz
Re 5.1 Ohms
Qa 3.95
Qe 0.61
Qt 0.53
Vas 27 litres
Xmax ±14 mm
Sd 227 cm²
Vd 317 cm³
Le 1.6 mH
Suggested Enclosures
Volume(litres) Vent Diameters(cm) Vent Length(cm) System Q -3db freq(Hz)
20 Sealed – Box 0 53
35 5 14 10 36
